A Hydrophilic Swell Bar is a water-reactive sealing strip designed to expand when it comes into contact with water. It is installed in concrete construction joints to help prevent water seepage through joints in foundations, basements, retaining walls, water tanks, and other concrete structures.
When exposed to moisture, the hydrophilic material swells and develops pressure against the surrounding concrete, helping seal potential leakage paths. It is commonly used as part of a joint waterproofing system where concrete sections meet and additional protection against water ingress is required.
GeoTech Lining PVT LTD provides Hydrophilic Swell Bar solutions for construction and infrastructure projects requiring effective sealing of concrete joints. These water-reactive strips are designed to expand upon contact with water and help reduce leakage through properly prepared and constructed joints.
Hydrophilic Swell Bars offer a practical joint-sealing solution for below-ground structures and selected water-retaining applications. Correct product selection, secure fixing, and appropriate concrete placement are essential for reliable performance.
Hydrophilic Swell Bars are available in different cross-sectional dimensions and material formulations. Their suitability depends on the joint design, expected water pressure, concrete conditions, and the product’s expansion behaviour.
| Property | Typical Specification / Information |
|---|---|
| Material | Hydrophilic water-swelling compound, often based on rubber or polymer formulations |
| Product Form | Flexible strip or bar |
| Cross-Section | Rectangular or other specified profiles |
| Dimensions | Available in different sizes, depending on product range |
| Swelling Behaviour | Expands upon contact with water; performance is formulation-dependent |
| Joint Type | Primarily suitable for designated concrete construction joints |
| Installation Method | Compatible adhesive, fixing system, or approved installation method |
| Water Pressure Suitability | Depends on product performance, joint design, and installation quality |
| Chemical Resistance | Depends on formulation and exposure conditions |
| Installation Surface | Sound, properly prepared concrete or another approved substrate |
| Technical Verification | Confirm dimensions, expansion ratio, and test data against the selected product’s technical data sheet |
Note: Actual dimensions, swelling behaviour, water pressure suitability, and installation requirements should be verified against the selected product’s technical data sheet and project specifications.
We provide reliable installation services for projects of all scales and industries. From material selection to final quality checks, we collaborate closely with our clients to ensure a precise, durable, and long-lasting liner installation.

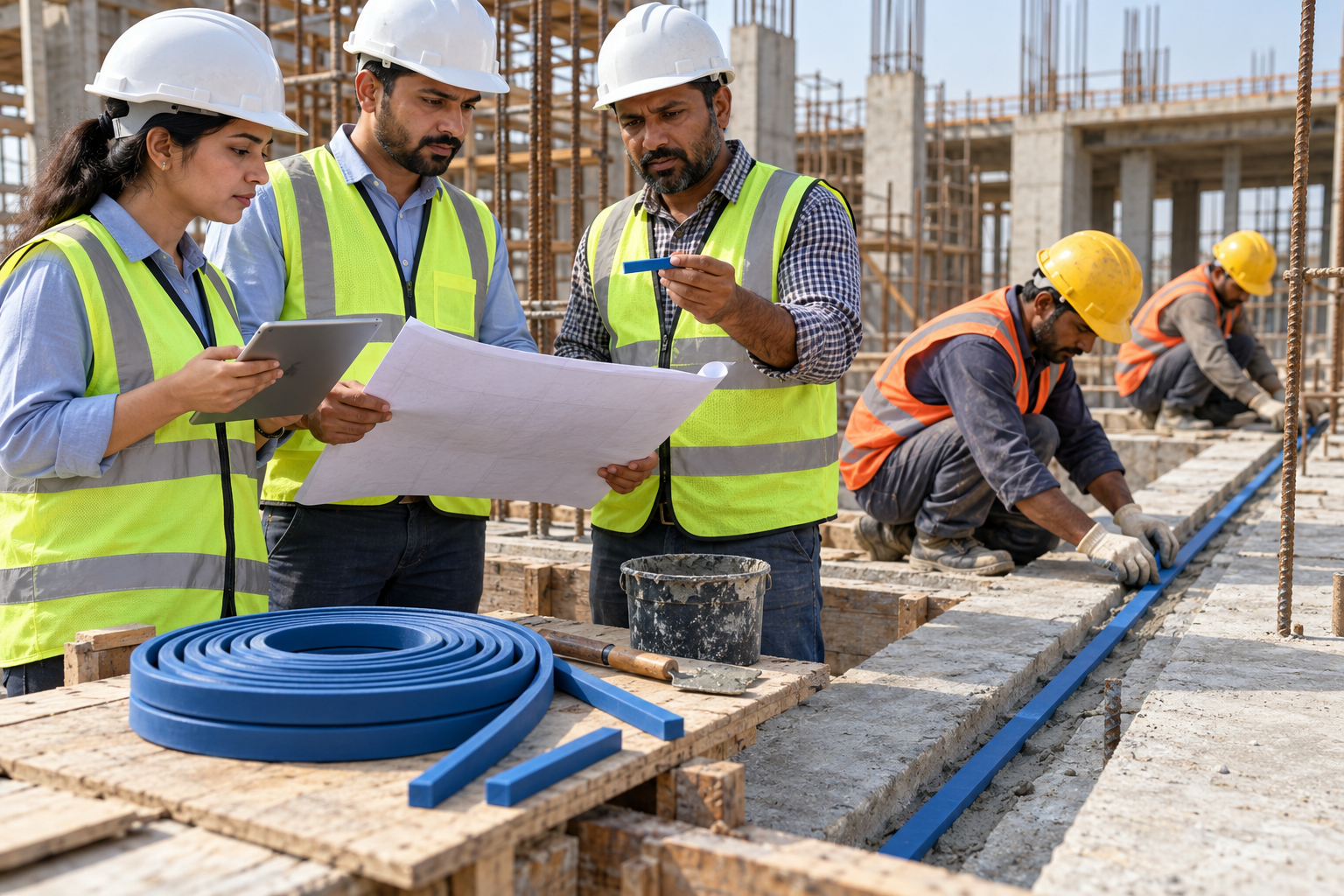

We review the concrete joint location, expected water exposure, structural conditions, and waterproofing requirements to determine whether a hydrophilic sealing system is appropriate.

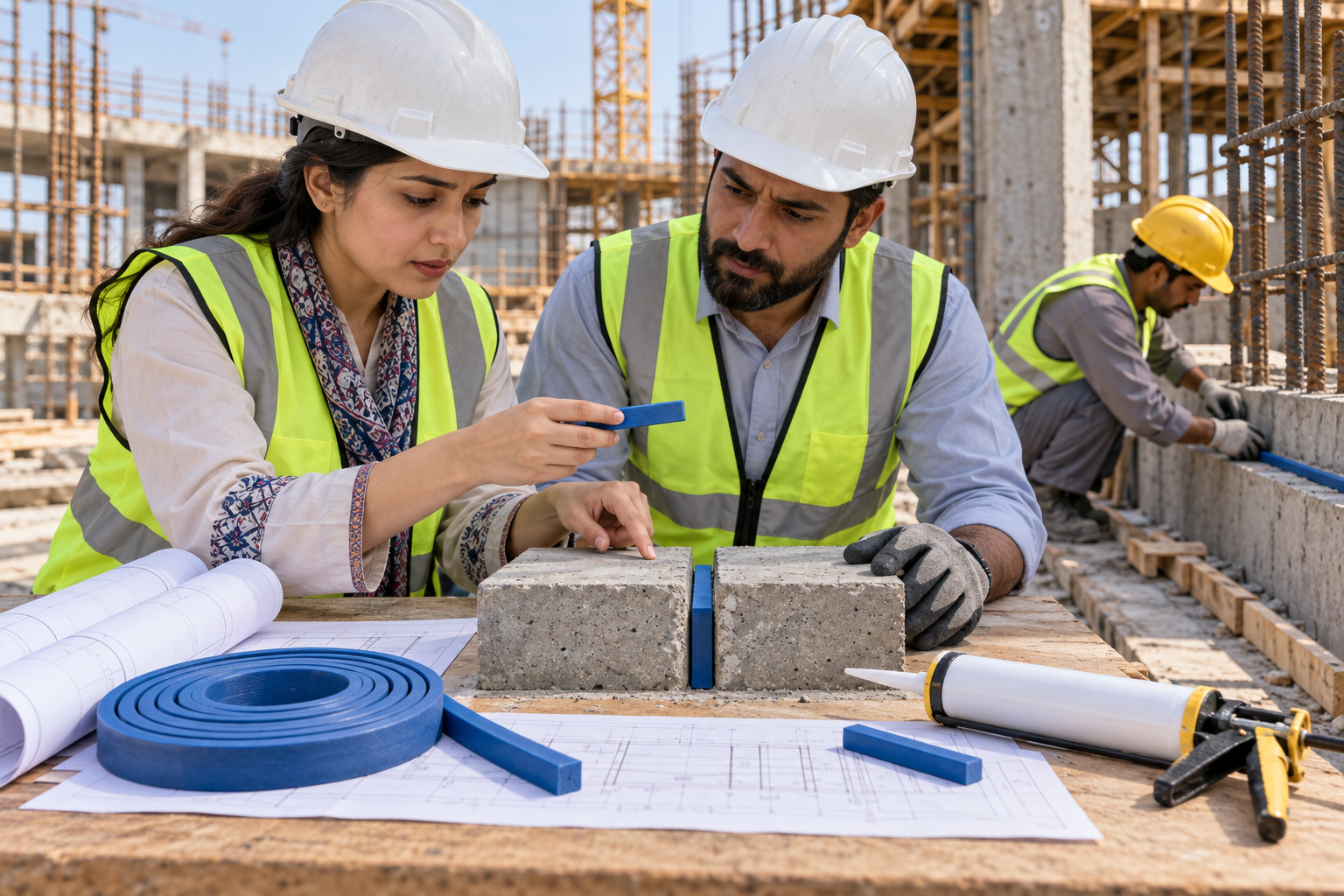

The suitable Hydrophilic Swell Bar profile is selected according to the joint dimensions, expected water pressure, exposure conditions, and the product's expansion characteristics.

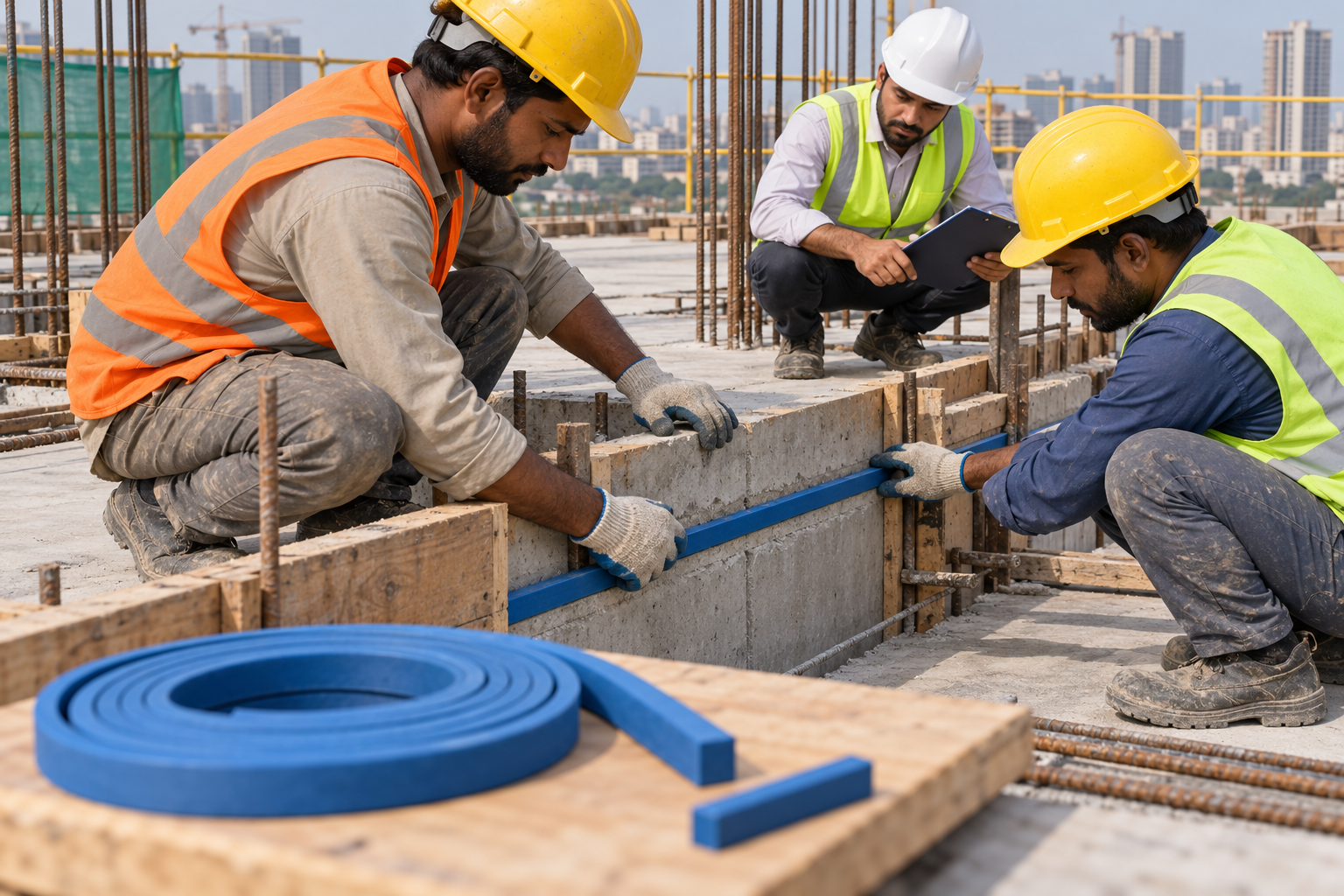

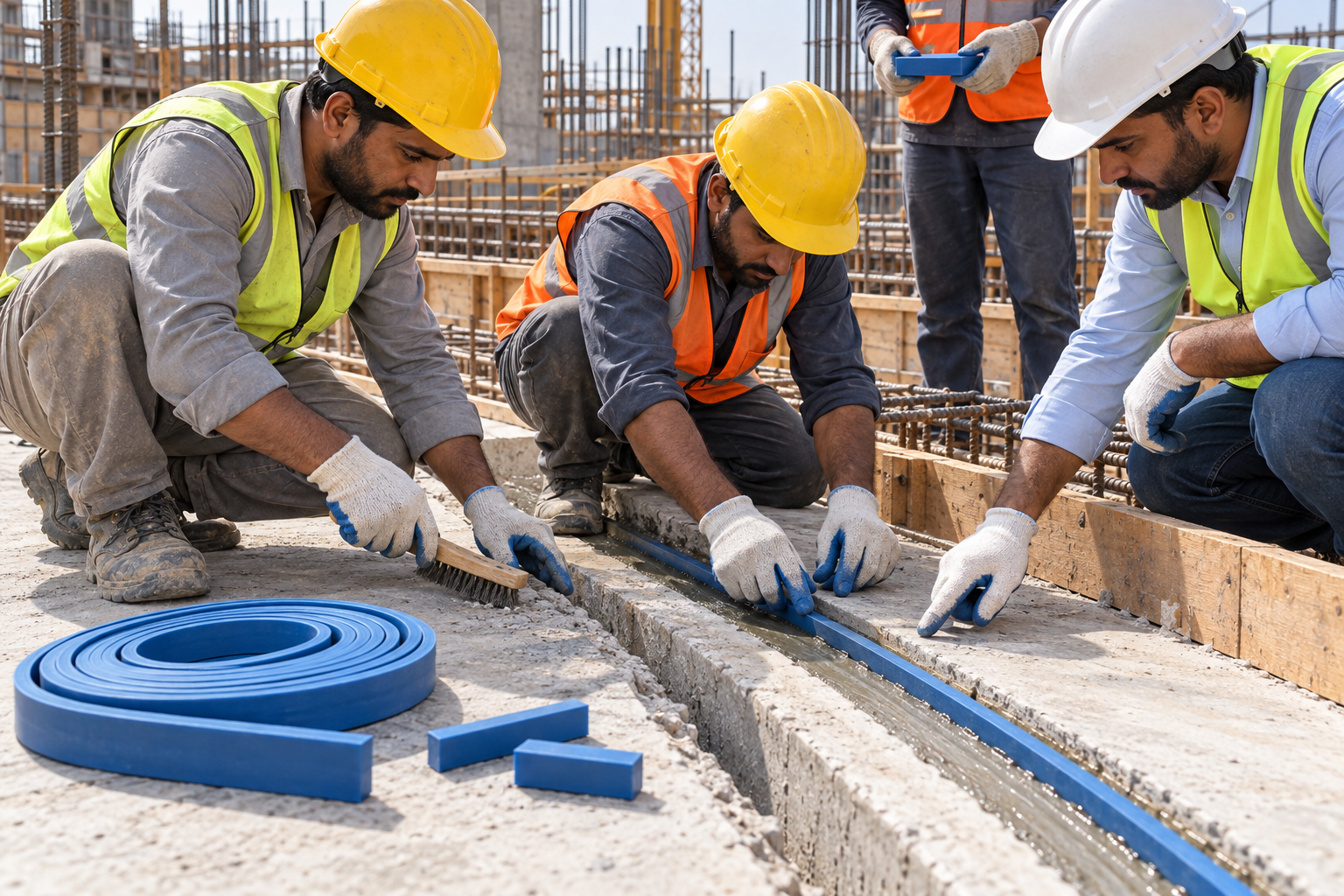

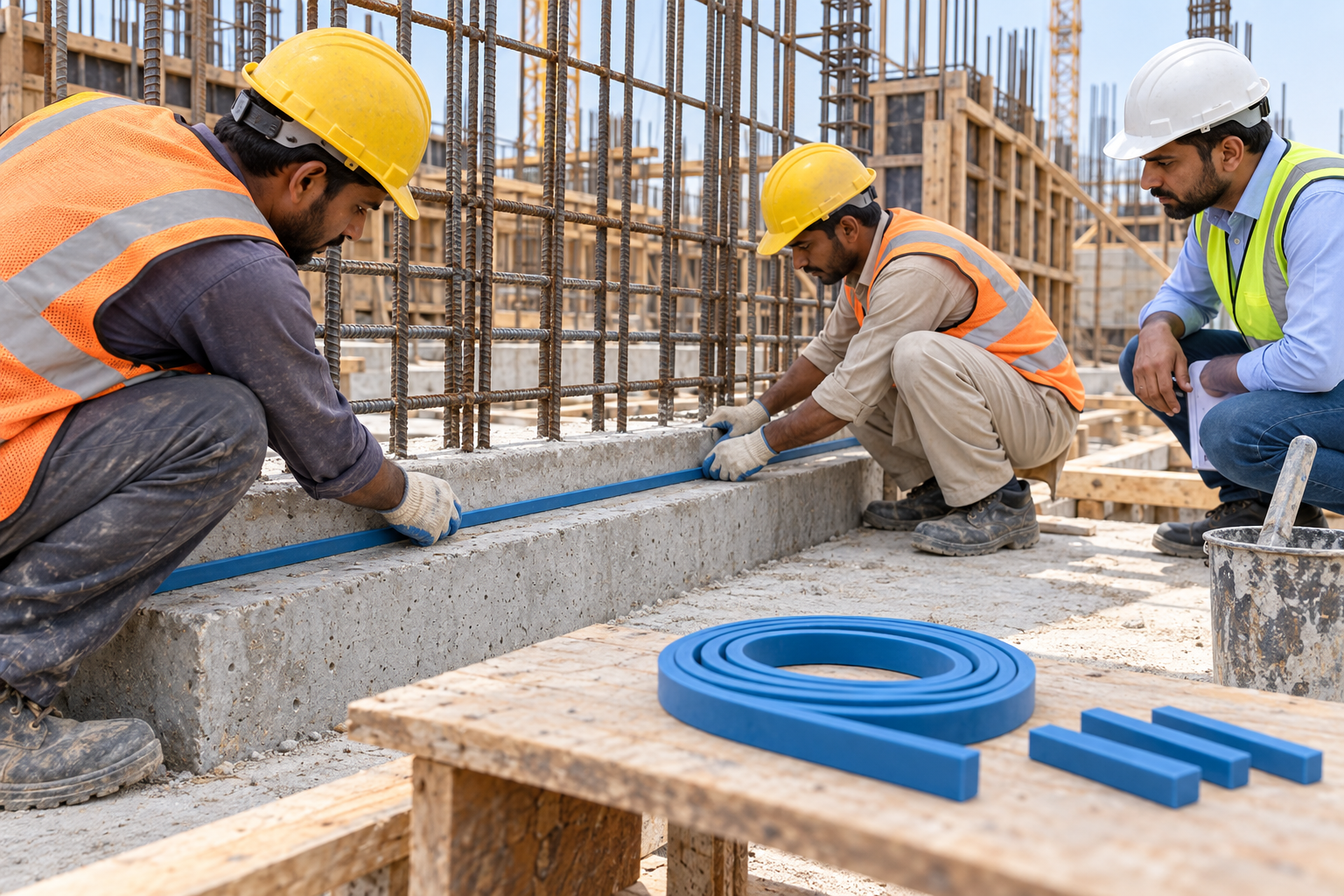

The joint surface is prepared, and the swell bar is positioned and securely fixed according to the manufacturer's instructions. Concrete placement is carried out carefully to prevent displacement and ensure proper concrete consolidation around the strip.
Foundations and basements may be exposed to groundwater and damp soil, creating a risk of seepage through concrete construction joints. Hydrophilic Swell Bars can help seal suitable joints when installed as part of a complete waterproofing design.
Typical applications:
Basement walls and floor slabs
Raft foundations
Concrete foundation joints
Underground parking structures
Below-ground service areas
The product should be selected according to groundwater conditions and joint design. It is not a substitute for a complete waterproofing system where external water pressure or other site conditions require additional protection.

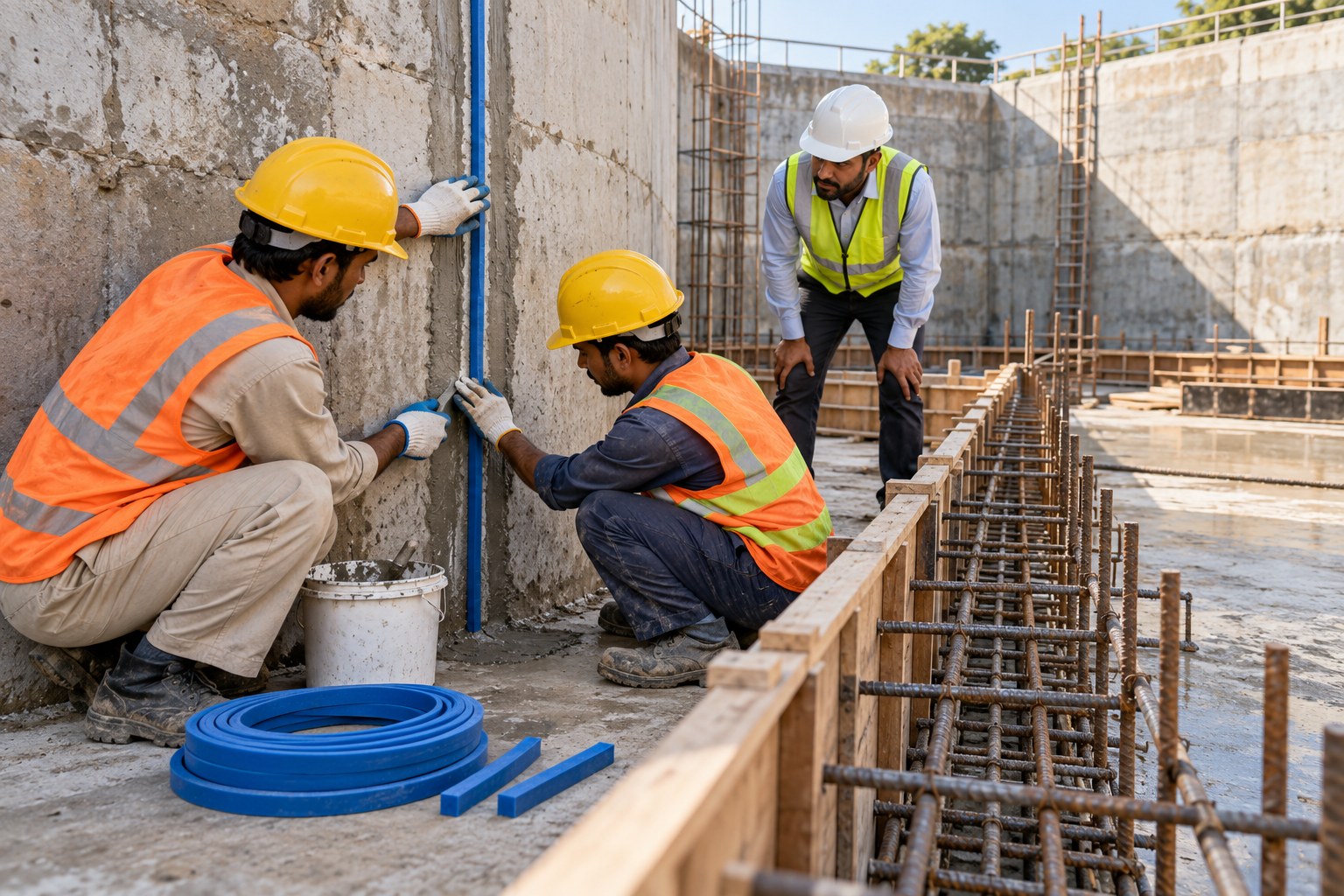

Selected concrete water-retaining structures can use hydrophilic joint-sealing strips to help control seepage through construction joints. Product selection must account for the type of water, pressure conditions, and the intended service environment.
Typical applications:
Concrete water-storage tanks
Water treatment structures
Wastewater collection chambers
Concrete reservoirs
Selected industrial water structures
For potable-water applications, confirm that the selected product meets the relevant requirements for drinking-water contact. Chemical or wastewater exposure also requires material compatibility verification.
GeoTech Lining PVT LTD provides Hydrophilic Swell Bar solutions for construction and infrastructure projects requiring additional protection against water seepage through concrete joints. From basements and foundations to retaining walls, water tanks, and selected underground structures, the correct product selection and installation help support effective joint waterproofing.
Civil Engineering and Infrastructure
Culverts and utility chambers
Underground service structures
Concrete channels
Selected hydraulic infrastructure
Commercial and Industrial Projects
Concrete service pits
Industrial water structures
Wastewater collection chambers
Suitable concrete joints exposed to moisture
Concrete retaining walls and underground structures may experience moisture exposure and water pressure at construction joints. A properly installed Hydrophilic Swell Bar can help reduce water penetration through these joints.
Typical applications:
Concrete retaining walls
Underground utility structures
Service tunnels
Underground chambers
Substructure construction joints
Secure fixing and suitable concrete cover are important to prevent premature swelling and ensure the strip remains correctly positioned during concrete placement.
Hydrophilic Swell Bars can be incorporated into suitable concrete joint details across a range of civil engineering projects where water ingress is a concern.
Typical applications:
Culverts and drainage structures
Concrete channels
Utility chambers
Underground infrastructure
Selected hydraulic structures
For joints subject to significant movement, large water pressure, or repeated wetting and drying, verify that the selected hydrophilic product is suitable. Movement joints may require a different or complementary joint-waterproofing solution.
GeoTech Lining PVT LTD has successfully installed a diverse range of Geo-synthetic applications, ranging from small farm dams to canal lining and complex floating.
